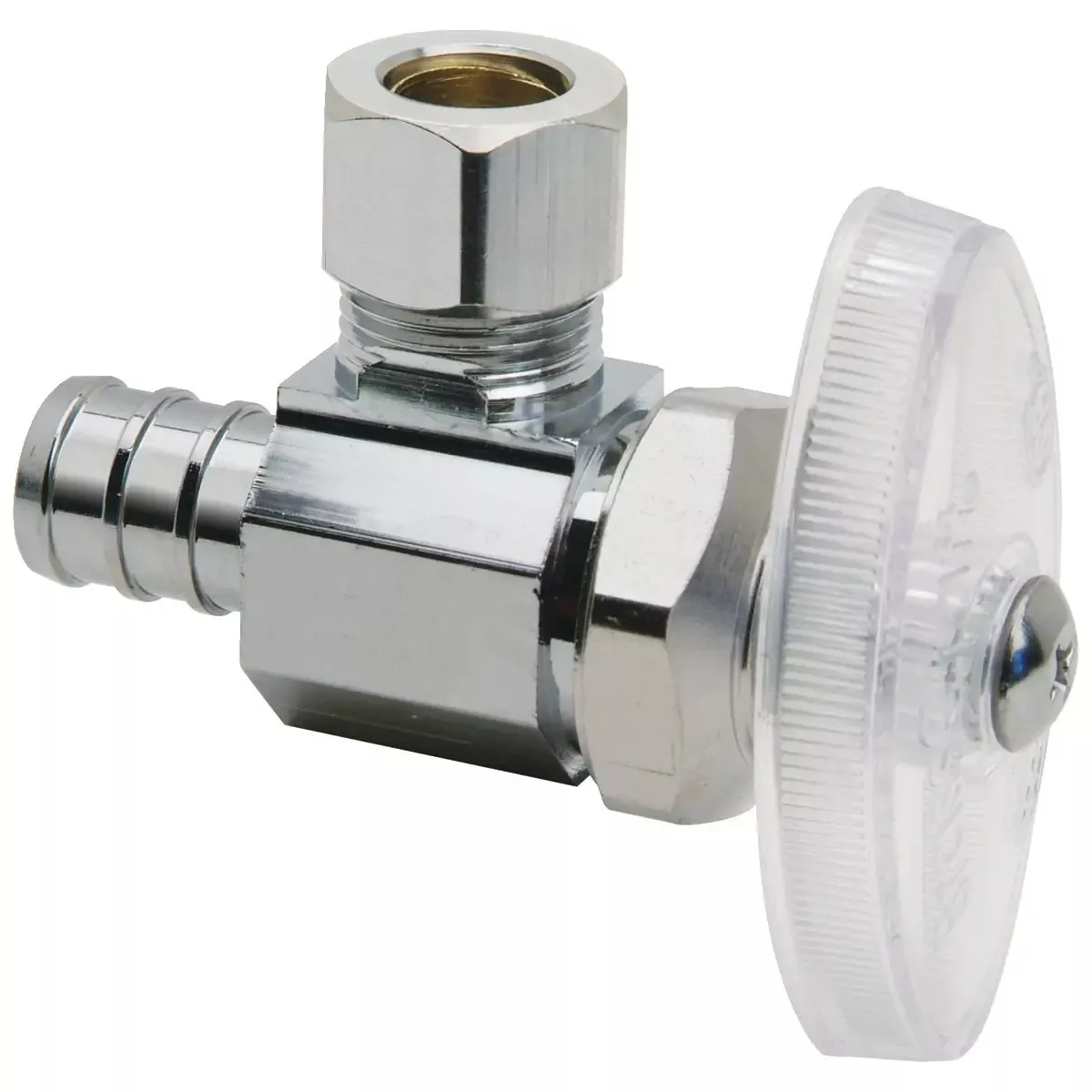

BrassCraft BRPX09X C 1/2″ Nom PEX Crimp x 1/4″ OD Compression Multi-Turn Angle Stop Valve
The BrassCraft BRPX09X C angle stop valve is designed for controlling water flow to individual fixtures such as faucets or toilets. This multi-turn valve features a 1/2″ nominal PEX connection for inlet and a 1/4″ OD compression outlet, providing a reliable shut-off solution for point-of-use water service.
Constructed from lead-free brass and finished in chrome, this valve meets NSF/ANSI 372 and ASME A112.18.1 performance standards. The multi-turn design offers precise shut-off control, while the knurled oval handle allows for smooth operation. This model is compatible with cold expansion (ASTM F1960) and crimp ring (ASTM F1807) PEX systems.
Product Features
- Inlet: 1/2″ nominal PEX crimp (ASTM F1807 compliant)
- Outlet: 1/4″ OD compression for copper or plastic tubing
- Body Material: Lead-free brass (complies with NSF/ANSI 372)
- Handle Type: Multi-turn oval handle
- Finish: Chrome-plated for corrosion resistance
- Operating Pressure: 125 PSI maximum
- Temperature Range: 40°F to 140°F
Installation Notes
- Designed for use with PEX tubing using crimp ring fittings
- Secure the compression outlet with appropriate ferrule and nut
- Intended for indoor use only in accessible locations
This angle stop is suitable for residential and light commercial applications requiring a dependable shut-off point. Professional installation is recommended for compliance with local plumbing codes and best practices.
