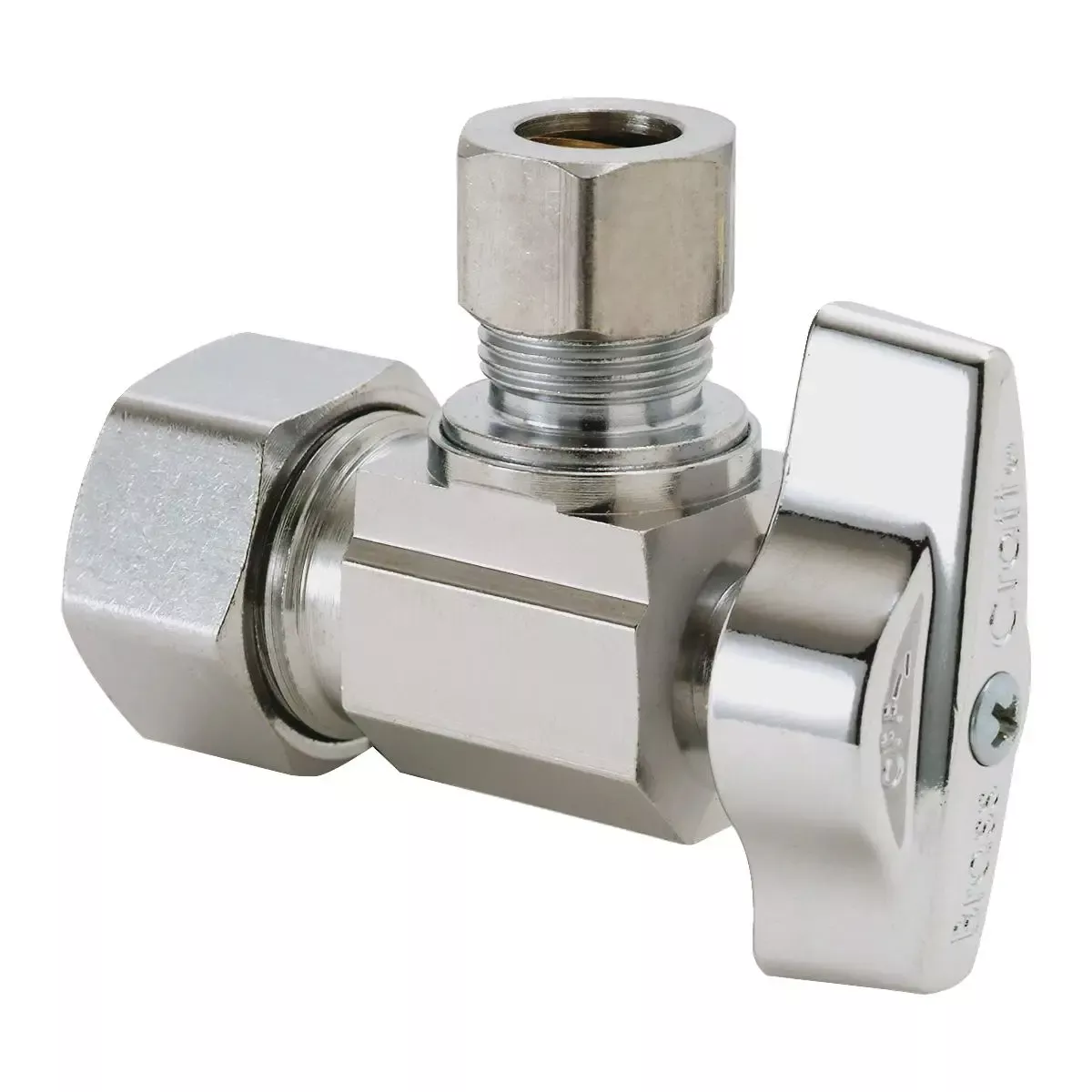

BrassCraft KTCR19XC 1/2″ Nominal Compression x 3/8″ OD Compression Quarter-Turn Angle Ball Stop
The BrassCraft KTCR19XC is a quarter-turn angle ball stop valve designed for controlling water flow to plumbing fixtures. It features a 1/2″ nominal compression inlet and a 3/8″ OD compression outlet, suitable for use in residential and light commercial applications where localized shut-off is required.
This valve incorporates a machined one-piece brass body and a corrosion-resistant chrome-plated finish. The 90-degree rotation handle operates a ball-type shut-off mechanism for smooth and fast water control, making it ideal for service points on toilets, faucets, dishwashers, and other fixture connections.
Product Features
- Inlet Connection: 1/2″ nominal compression
- Outlet Connection: 3/8″ OD compression
- Valve Type: Quarter-turn angle ball stop
- Body Material: Forged brass with chrome plating
- Seal Mechanism: Dual O-ring stem with PTFE seats
- Handle Type: Plated metal with oval profile for controlled operation
Performance Specifications
- Working Pressure: 125 PSI maximum (non-shock)
- Temperature Range: 40°F to 180°F
- Media: Potable water
- Compliance: Manufactured in accordance with lead-free requirements
- Testing: 100% leak-tested during production
- Country of Origin: Made in USA
Installation Notes
Install on rigid copper supply lines using the compression inlet with proper alignment. Use compatible 3/8″ OD supply tubing on the outlet side. Do not over-tighten compression fittings. Suitable for new installations or valve replacement where a dedicated shut-off is needed. Install per local plumbing code requirements.
