BrassCraft CS401DLXC 1/2″ x 3/8″ Angle Toilet Supply Kit – Sweat Inlet with 12″ Copper Riser

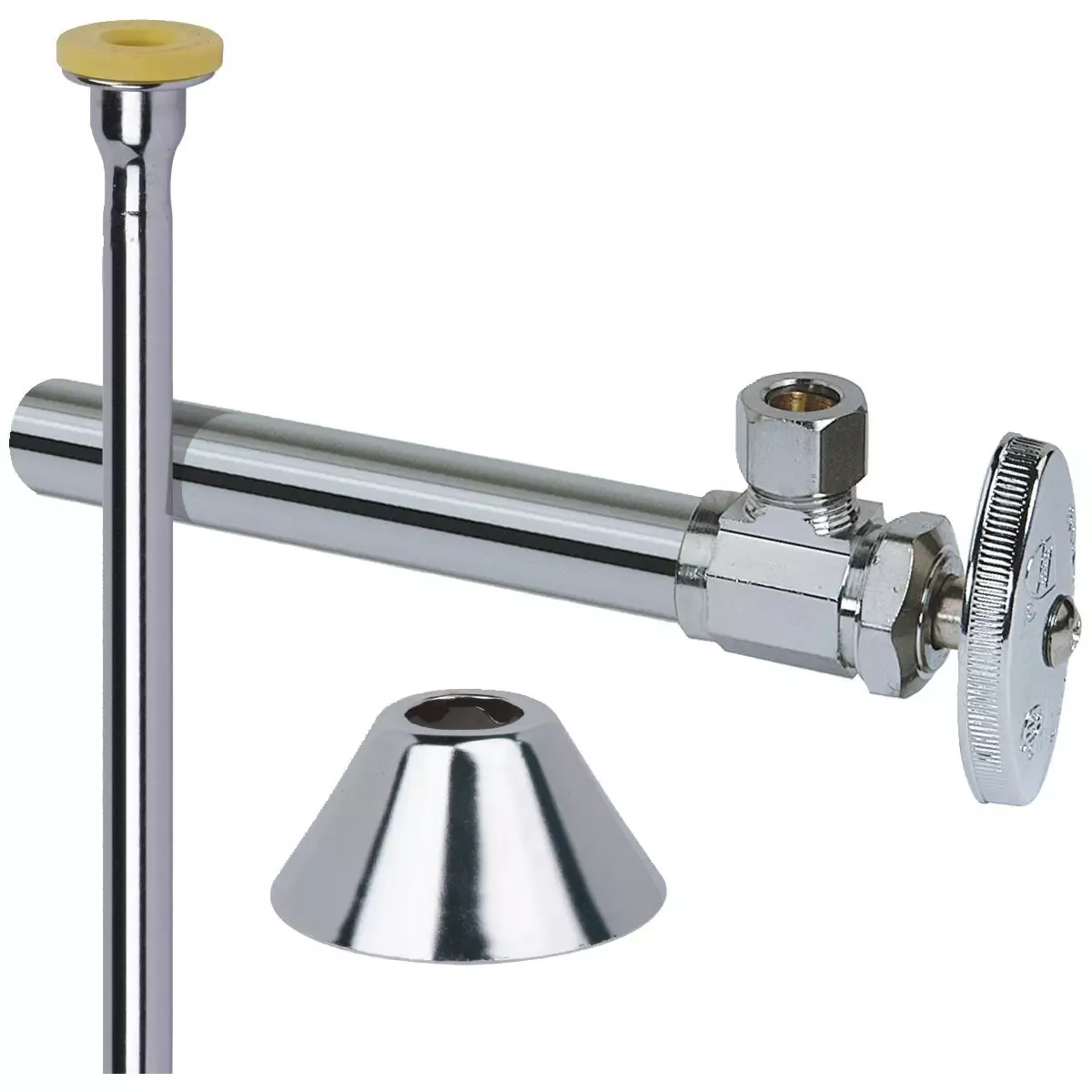

The BrassCraft CS401DLXC angle supply kit is designed to establish a reliable connection between the toilet tank and the building’s water supply. This kit includes a 1/2″ nominal sweat inlet multi-turn angle valve, a 3/8″ OD compression outlet, a 5-inch sweat extension tube, a 12-inch copper riser, and a chrome bell flange for a clean installation finish.
The angle valve features a machined brass body and PTFE seats to provide consistent shut-off capability. Its multi-turn operation allows for precise control, and the chrome-plated finish offers corrosion resistance in exposed installations. The included copper riser is cut-to-length for field adaptation to fit various toilet configurations.
Kit Components
- Angle Valve: 1/2″ nominal sweat inlet x 3/8″ OD compression outlet
- Extension Tube: 5″ sweat tube for adapting supply length
- Riser: 3/8″ OD x 12″ copper riser tube
- Flange: Decorative chrome bell flange for wall termination
Material and Specifications
- Body: Brass, chrome-plated
- Seat: PTFE
- Handle Type: Oval multi-turn
- Application: Toilet supply connection
- Country of Origin: USA
Installation Information
This supply kit is intended for soldered connection to a 1/2″ nominal copper pipe. The included sweat extension allows for adjustment if the existing stub-out is recessed. Cutting the riser to match the toilet fill valve height is required. Proper installation requires soldering equipment, compression fitting tools, and tube cutters. Follow all applicable local codes and manufacturer instructions.
Use Case
Suitable for new toilet installations or retrofits where a clean, secure shut-off and supply solution is required. Recommended for use by licensed plumbers or experienced professionals familiar with sweat fittings and compression connections.
