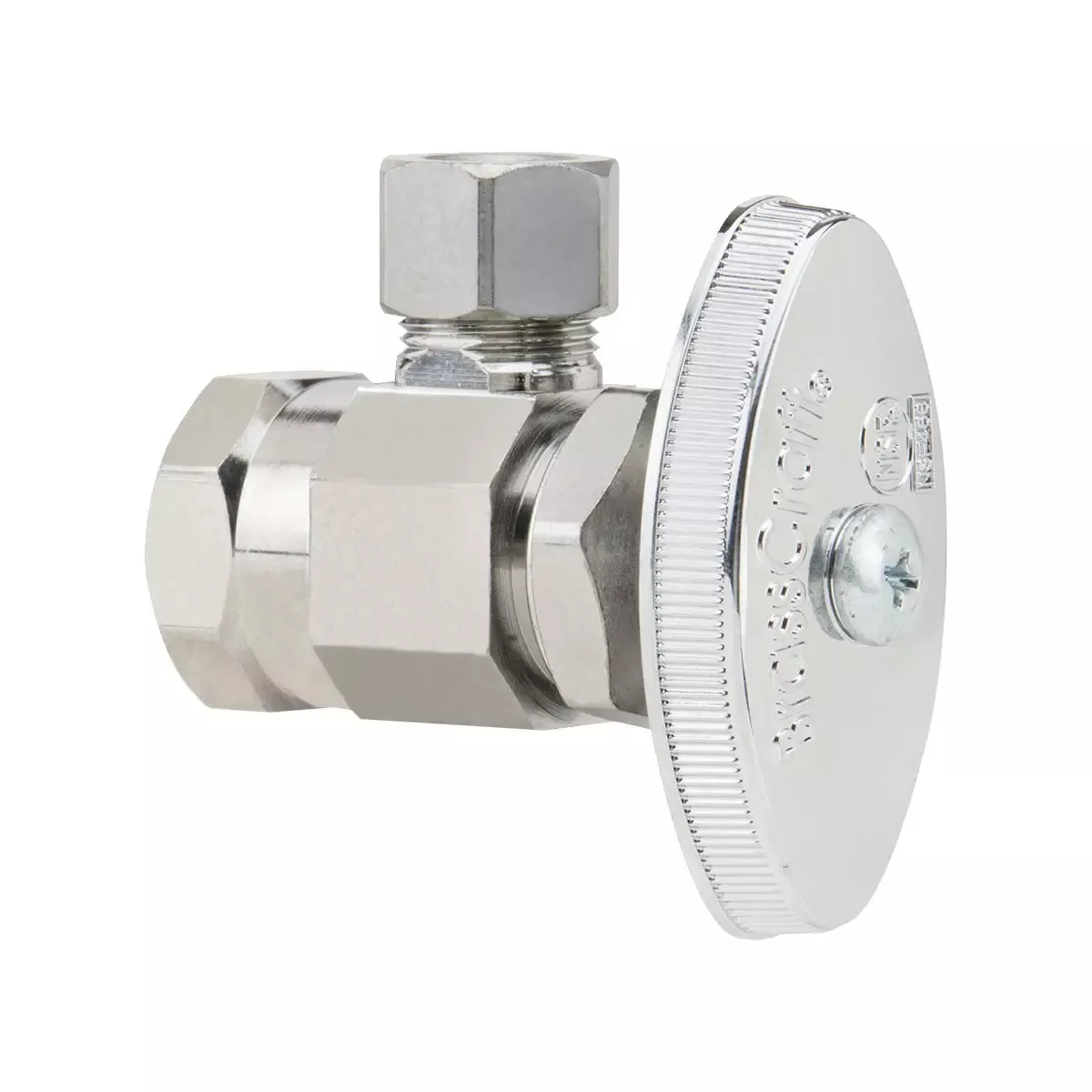

BrassCraft OR17XC – 1/2″ FIP x 3/8″ OD Compression Multi-Turn Angle Stop Valve
The BrassCraft OR17XC is a multi-turn angle stop valve designed for point-of-use shutoff in potable water systems. With a 1/2″ female iron pipe inlet and 3/8″ OD compression outlet, this valve provides localized control to fixtures such as faucets and toilets, allowing service or replacement without shutting down the main water supply.
Key Features
- Lead-Free Brass Construction: Compliant with NSF 61 and NSF 372 standards for potable water applications.
- Multi-Turn Operation: Standard stem design enables gradual flow control with multiple handle rotations.
- 1/2″ FIP Inlet: Threaded connection allows direct installation to iron pipe or threaded fittings.
- 3/8″ Compression Outlet: Connects to standard fixture supply lines without soldering or special adapters.
- Oval Knurled Handle: Offers secure grip and smooth turning even in confined installation spaces.
- Factory Tested: Each valve is pressure-tested to verify leak-free performance.
Technical Specifications
- Inlet Size: 1/2″ FIP
- Outlet Size: 3/8″ OD Compression
- Body Material: Lead-Free Brass
- Operating Pressure: 125 PSI maximum
- Temperature Range: 40°F to 140°F
- Dimensions: Approx. 1.15″ H x 2.49″ L x 1.14″ W
Installation Overview
Install the valve to a 1/2″ threaded fitting using thread sealant on the inlet threads. Tighten the compression outlet onto 3/8″ copper or braided tubing with the included compression nut and sleeve. Use appropriate tools and ensure alignment to prevent over-tightening or leaks. Installation should comply with local plumbing codes; professional installation is recommended for best results.
Common Applications
- Lavatory and kitchen faucets
- Toilet supply connections
- Point-of-use shutoff in residential plumbing systems
