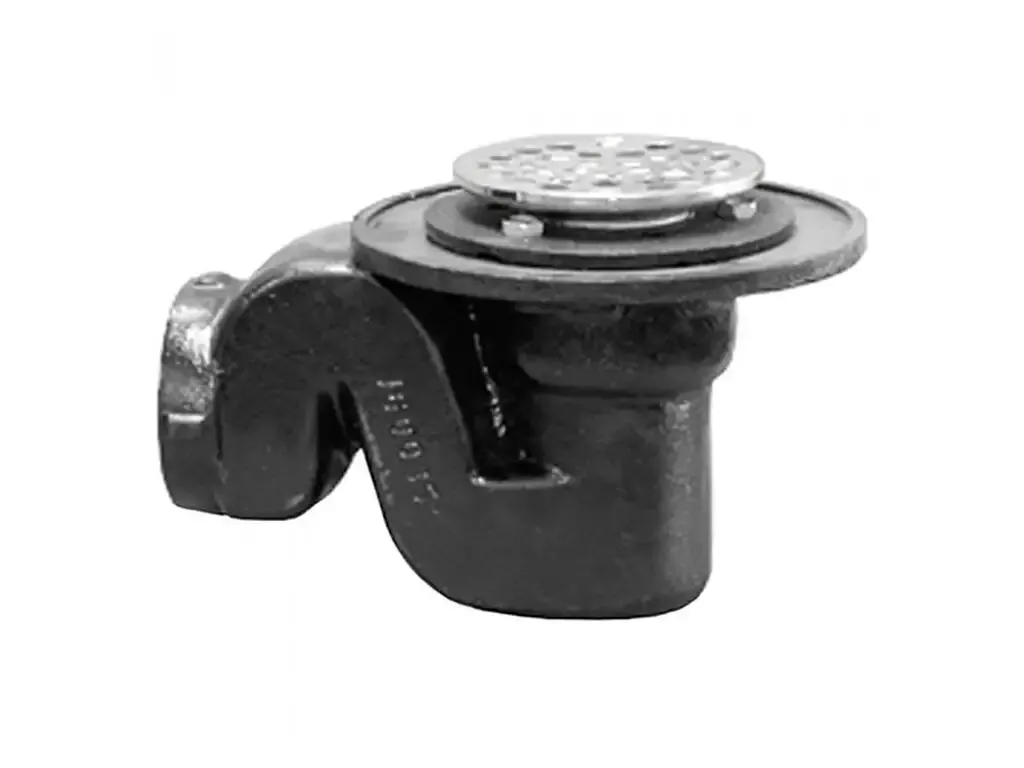

Fox Foundry J60061 2″ Combination Drain Trap with Strainer and Clamp Ring
The Fox Foundry J60061 is a 2-inch combination drain trap equipped with an integrated strainer and bolt-down clamping ring. Built for commercial and residential use, this unit is engineered to manage drainage effectively while minimizing the risk of blockages. It incorporates a robust cast construction and weep holes for added performance in high-use environments.
Product Features
- Nominal Size: 2 inches
- Connection Type: IPS threaded outlet
- Trap Length: 5-1/2 inches overall
- Inside Diameter: 2-1/8 inches
- Strainer: Fixed integral strainer for debris interception
- Clamp Ring: Bolt-down collar secures to surrounding surfaces
- Drainage Design: Includes molded weep holes to assist with water dispersal
Installation Guidance
This unit is intended for installation in applications requiring a combined strainer and trap assembly. Secure connection to a 2″ IPS pipe is required. The clamping ring must be bolted down for a watertight seal. Proper installation should follow all applicable local plumbing codes; professional installation is recommended for commercial settings or critical drainage applications.
