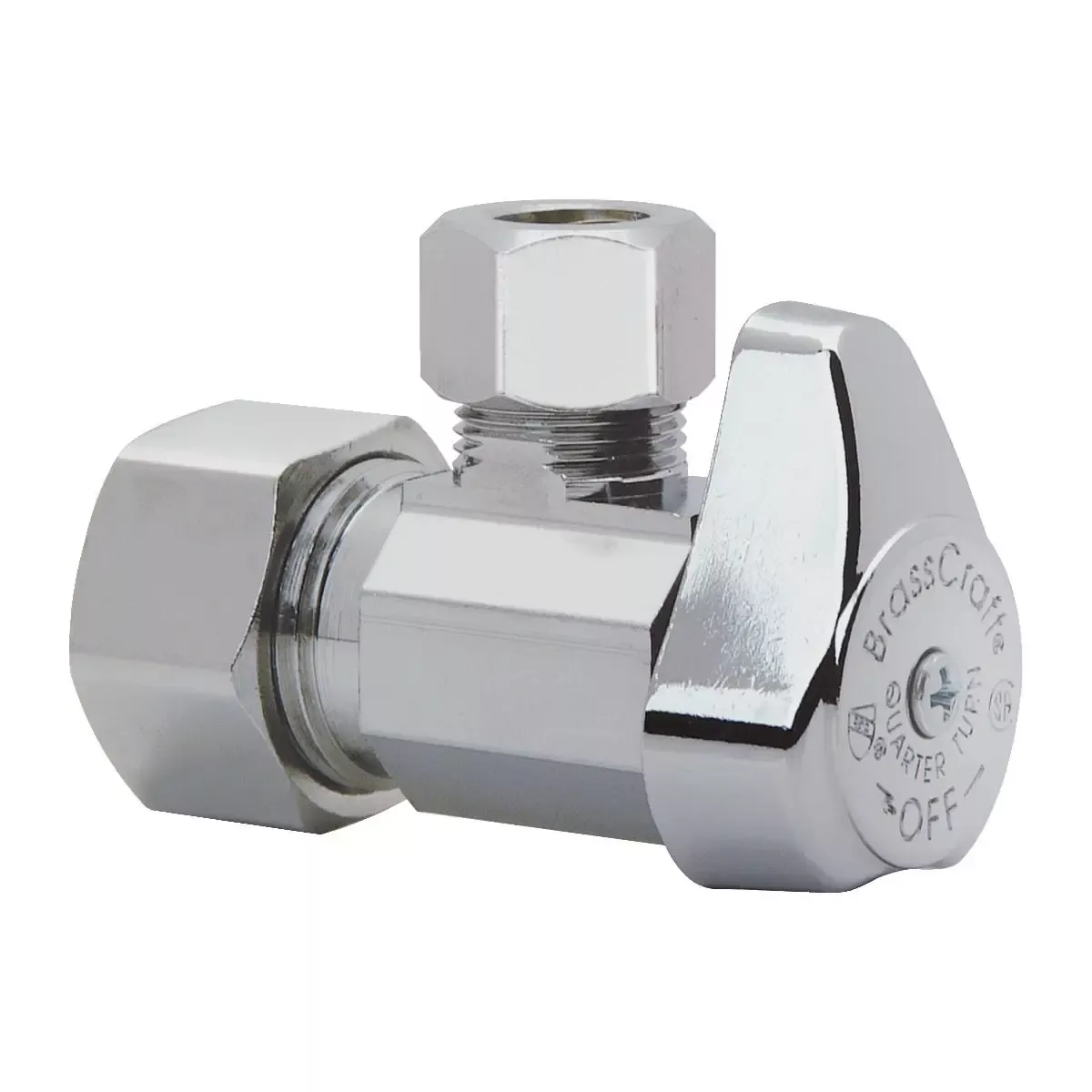

BrassCraft G2CR19XC – 1/2″ Nominal Push x 3/8″ OD Compression 1/4-Turn Angle Stop Valve
The BrassCraft G2CR19XC angle stop valve provides localized water shutoff for residential plumbing fixtures such as lavatories, toilets, and appliances. This valve features a 1/4-turn ball valve mechanism for smooth, fast operation and reliable control. The push-to-connect inlet is compatible with 1/2-inch nominal copper, CPVC, and PEX tubing, eliminating the need for soldering or special tools during installation.
Manufactured from corrosion-resistant brass and finished with a chrome-plated exterior, the G2CR19XC is built for long-term service in potable water applications. Its compression outlet connects securely to standard 3/8-inch OD riser tubing for fixture supply lines.
Key Product Features
- 1/4-Turn Operation: Full shutoff or open flow in a single quarter turn for quick isolation of fixtures
- Push-Fit Inlet: No tools or solder required—connects directly to copper, CPVC, or PEX tubing
- Compression Outlet: Standard 3/8″ OD compression connection for fixture supply lines
- Durable Brass Body: Machined from lead-free brass and chrome plated for corrosion resistance
- Factory-Installed Tube Insert: Provides internal support for PEX and CPVC tubing
Specifications
- Inlet: 1/2″ Nominal Push-Fit
- Outlet: 3/8″ OD Compression
- Body Material: Brass
- Finish: Chrome plated
- Handle Type: 1/4-turn lever
- Pressure Rating: 125 PSI
- Temperature Range: 40°F to 140°F
- Application: Potable water systems
- Dimensions: Approx. 1.02″ x 2.16″
Installation Notes
Install onto clean, square-cut tubing per manufacturer instructions. Ensure proper insertion depth for the push-fit connection and tighten compression nut securely on the outlet side. Use is limited to domestic water supply systems. Professional installation is recommended for code compliance and optimal performance.
