BrassCraft CR1901LRXR1 Dual Outlet Angle Stop – 5/8″ OD Comp Inlet x Dual 3/8″ OD Comp Outlets

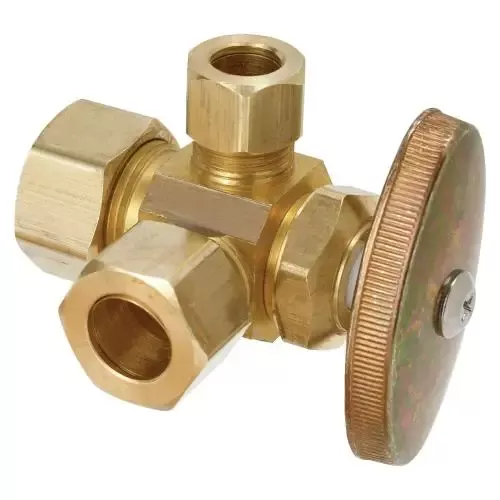

The BrassCraft CR1901LRXR1 angle stop is a multi-turn, dual-outlet valve used to control water flow to two independent fixtures from a single supply line. Designed for exposed applications, this valve features a 5/8″ OD compression inlet (for 1/2″ nominal copper pipe) and dual 3/8″ OD compression outlets commonly used with faucets, ice makers, dishwashers, or other appliances requiring a cold water connection.
This valve is manufactured from forged brass for durability and is intended for use in potable water systems. Its multi-turn handle enables precise shut-off and flow control during maintenance or fixture replacement without interrupting supply to other branches.
Product Features
- Inlet Size: 5/8″ OD compression (fits 1/2″ nominal copper pipe)
- Outlet Size: Two 3/8″ OD compression connections
- Configuration: Dual outlet, angle pattern
- Valve Type: Multi-turn with loose key handle
- Body Material: Forged brass, corrosion-resistant
- Maximum Working Pressure: 125 PSI
- Temperature Range: 40°F to 140°F
- Lead-Free: Yes – complies with lead-free plumbing requirements
Installation Notes
The CR1901LRXR1 is designed for installation on 1/2″ nominal copper supply tubing using a standard compression nut and ferrule. Each outlet is compatible with 3/8″ OD compression risers or flexible supply lines. Always confirm compatibility with existing fixtures and verify connections are made to code. Do not overtighten compression fittings.
Application Considerations
- Jobsite Use: Ideal for installations requiring supply to dual fixtures from a single shut-off point
- Retrofit or New Construction: Suitable for either application where space efficiency and control are required
- Installation Environment: Intended for exposed plumbing beneath sinks or behind access panels
Professional Guidance
Contractors: Maintain inventory for applications requiring multiple fixture connections with minimal wall penetrations. Dual outlets help reduce material and labor costs by eliminating the need for additional shut-off valves.
Maintenance Technicians: Use during service replacements or upgrades in kitchens, bathrooms, or utility areas where multiple water-fed fixtures are present. Offers efficient control and minimizes system disruption during fixture servicing.
