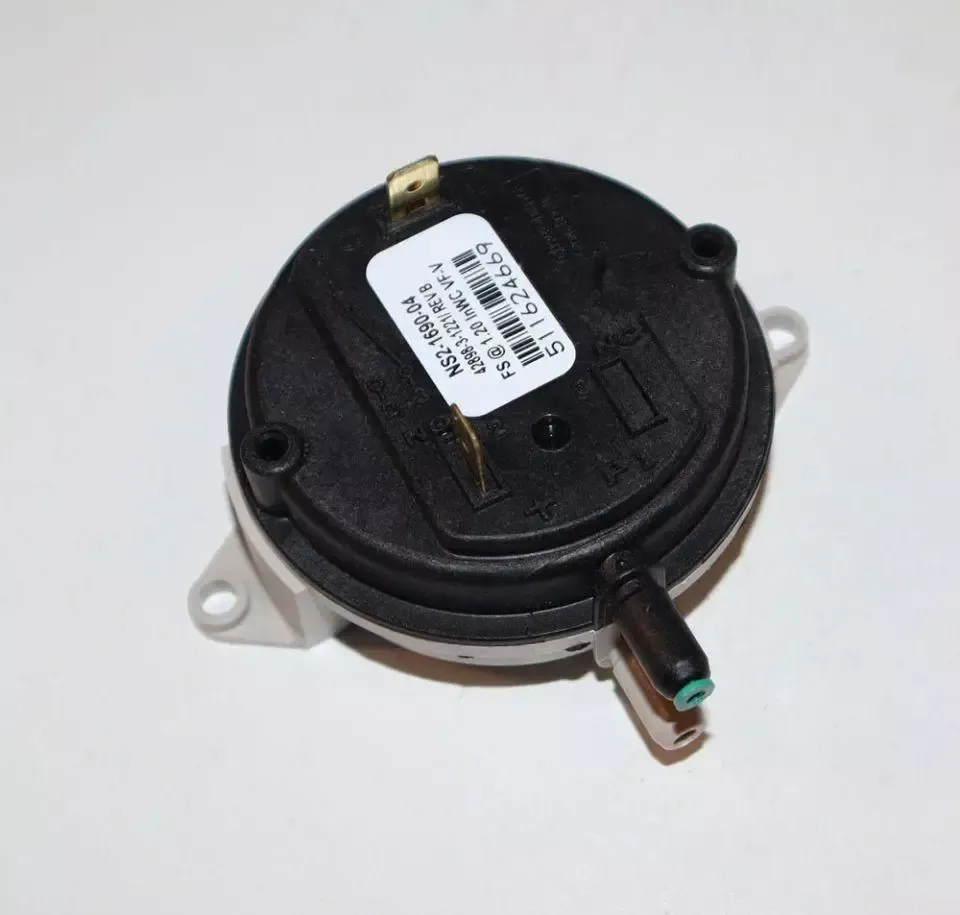

Weil-McLain CGI6 Air Pressure Switch – Precision Monitoring for Reliable Boiler Operation
The Weil-McLain CGI6 Air Pressure Switch is a factory-specified replacement component designed to ensure proper airflow verification within Weil-McLain boiler systems. By monitoring pressure accurately, it provides a safety interlock that prevents burner operation under improper draft conditions, protecting both equipment and occupants.
Key Functions and Benefits
- Accurate Pressure Verification: Calibrated to maintain safe combustion by confirming airflow before burner ignition.
- System Protection: Shuts down operation if unsafe pressure conditions are detected, preventing potential hazards.
- Engineered Fit: Manufactured for Weil-McLain CGI6 boilers, ensuring seamless integration without field modifications.
- Long-Term Reliability: Built from durable materials to withstand temperature fluctuations and system cycling.
Technical Specifications
- Model: CGI6 Air Pressure Switch
- Setpoint: 1.20 in. W.C. (Water Column)
- Type: Single-pole air proving switch
- Application: Weil-McLain CGI6 boiler models
Installation Guidelines
Installation of the CGI6 Air Pressure Switch should be performed by a licensed HVAC technician or plumber. Proper tubing connections and electrical terminations are critical for accurate function. Field adjustments should not be made unless specified by Weil-McLain service documentation. Always verify operation through a complete ignition cycle after replacement.
Professional Notes
For Contractors: This switch is a direct-fit OEM replacement, reducing downtime and ensuring compliance with Weil-McLain specifications. Its calibrated setpoint minimizes nuisance lockouts while maintaining system safety.
For Service Crews: Keep this pressure switch on hand during scheduled boiler maintenance or troubleshooting. It provides a fast, reliable solution when diagnosing pressure-related ignition issues.
Summary
The Weil-McLain CGI6 Air Pressure Switch is an essential safety and performance component for CGI6 boilers. With its precise calibration, durable design, and direct compatibility, it supports consistent, code-compliant heating system operation.
