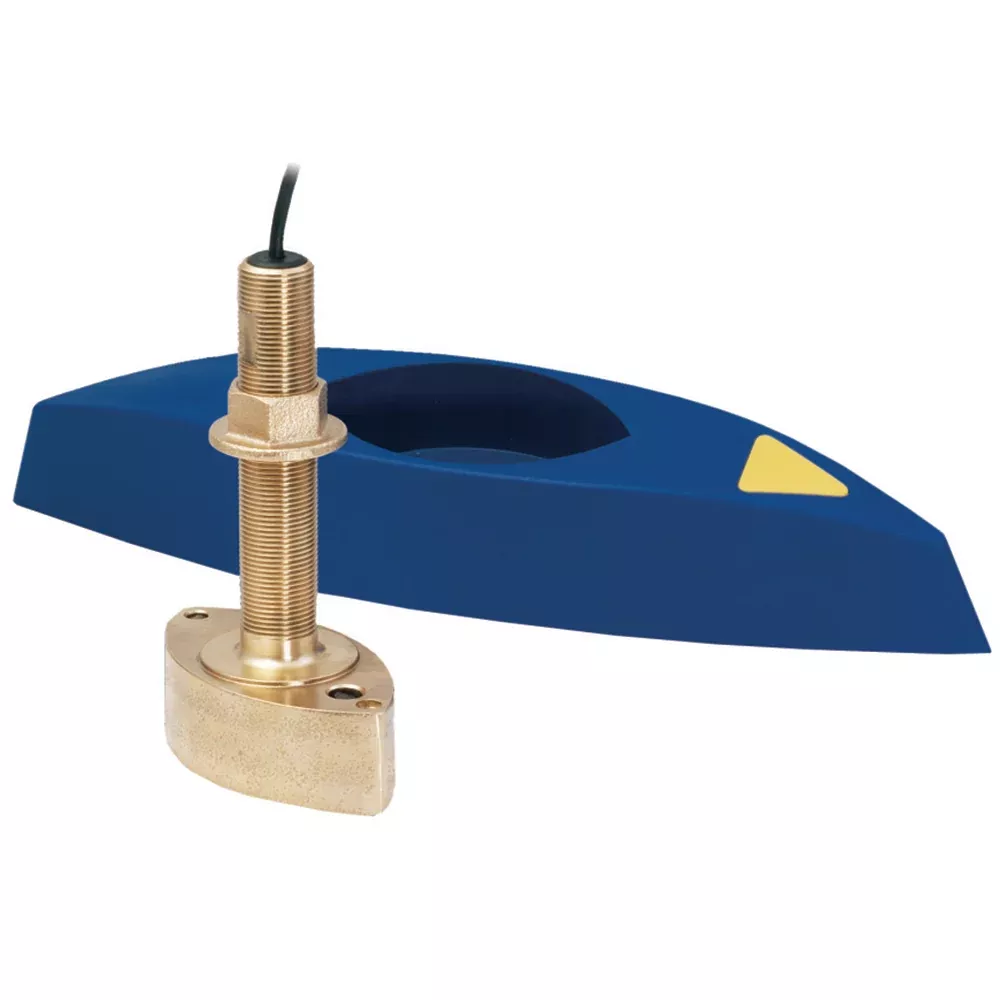

B45-DT-HB 600W Thru-Hull Transducer w/Fairing Block & Humminbird 9 Connector
The B45 is our smallest and most economical, dual-frequency, bronze, stem transducer. Its streamlined shape and High Performance fairing block deflects aerated water from the transducer’s face for strong return echoes and clear display images.
Features:
- Bronze housing
- Depth and Temperature
- Recommended for planing-hull powerboats and cruising sailboats up to 9 m (30’)
- Good sensitivity in a compact housing
- Fast-response water-temperature sensor provides ±0.2°C (±0.1°F)
- High-Performance Fairing included
- Usable Shaft Length: 92 mm (3.62”)
- Standard fairing block
- Frequency: 50/200 kHz
- Maximum Depth Range:
- 50 kHz—235 m to 353 m (800’ to 1,200’)
- 200 kHz—118 m to 206 m (400’ to 700’)
- Cone: 50 kHz—45°, 200 kHz—12°
- RMS Power: 600 W
This product may not be returned to the original point of purchase.Please contact the manufacturer directly with any issues or concerns.
Features & Specifications
- UPC: 0801769000177
- Dimensions: 16 × 12 × 4
- Category: Marine Navigation & Instruments | Transducers
- Mounting Style = Thru-Hull
Compatibility, Limitations & Notices
- This product is listed by the supplier as non-returnable.
