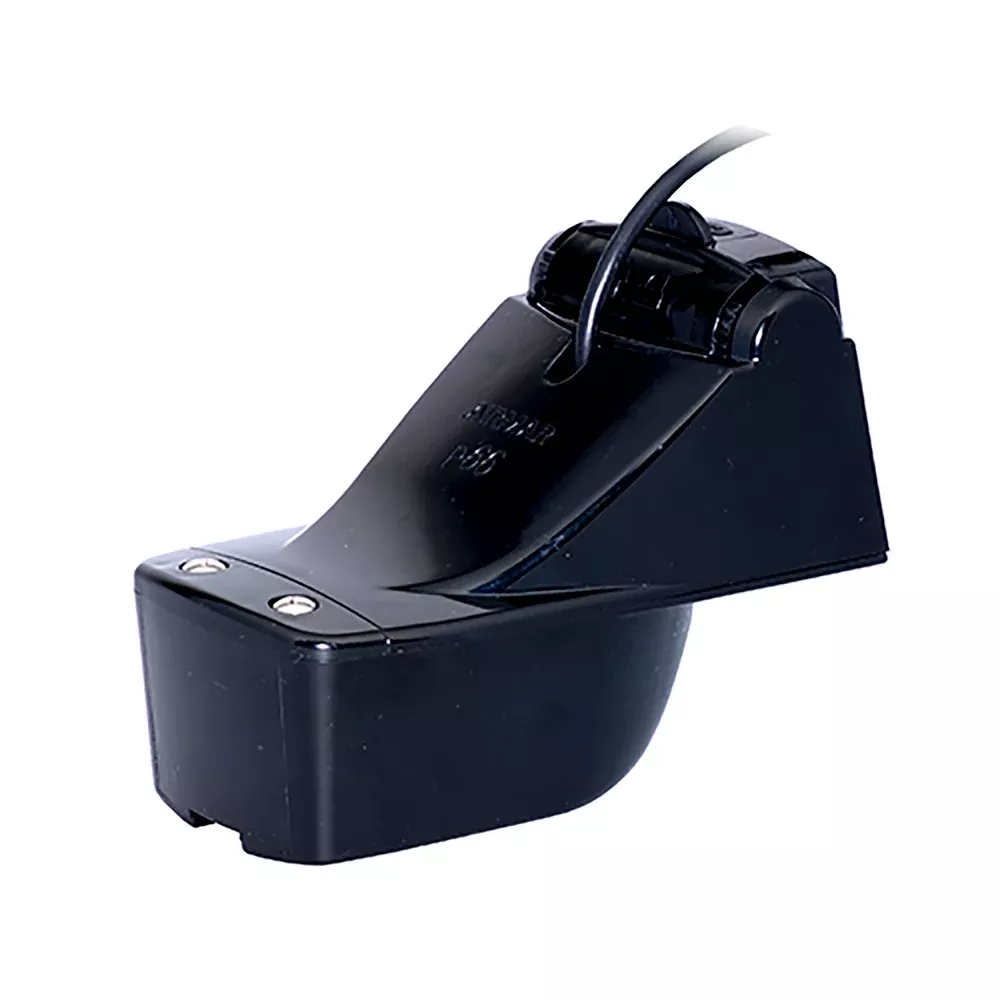

P66 Transom Mount Transducer f/Humminbird 9 Connector Units
Features:
- Depth and temperature in one housing
- Plastic kick-up bracket
- Accommodates transom angles between 2° and 20°
- Recessed waterflow channel protects paddlewheel
- Transducer can be removed from bracket without the use of tools for easy service and storage
- Boat Size: Up to 12M (40′)
- Frequency: 50/200 kHz
- Beamwidth: 50 kHz-45°, 200 kHz-11°
- RMS Power: 600W
- 10M Cable
Fits: All 800, 900 & 1100 Series except 967 3D
This product may not be returned to the original point of purchase.Please contact the manufacturer directly with any issues or concerns.
Features & Specifications
- Manufacturer Part Number: P66-DT-HB
- Dimensions: 11 × 8 × 4
- Category: Marine Navigation & Instruments | Transducers
- Mounting Style = Transom | Imaging = Standard | Chirp = No | Cable Length (Feet) = 32′ | Temperature = Yes | Speed Included = Yes | Pins = 7
Compatibility, Limitations & Notices
- This product is listed by the supplier as non-returnable.
