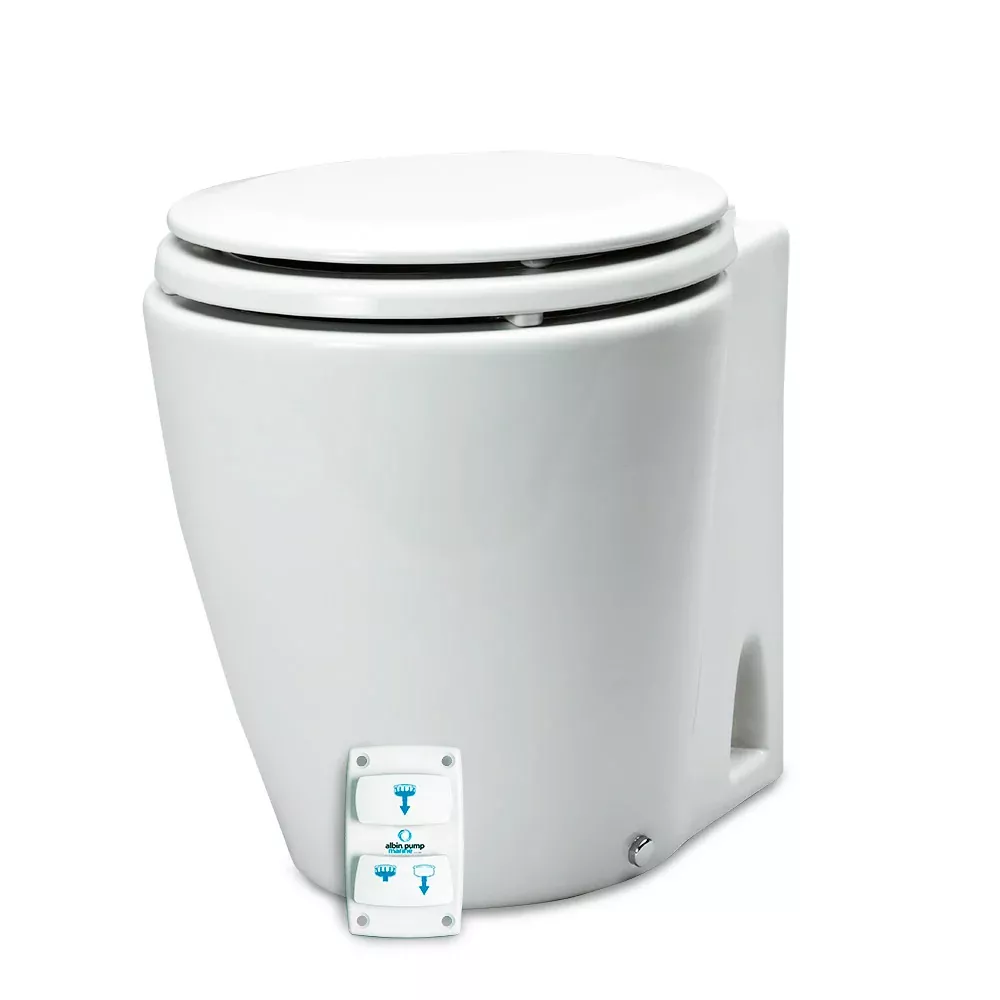

Design Marine Toilet Silent Electric – 12V
Design silent electric compact toilet with seperated flushing and waste disposal cycle. Including electronic 3 function control panel, before use, after use and short use plus a trimmer to regulate the flow rate.
Water is from existing pressurized water system onboard with 12V solenoid valve (PN 07-66-030) or 12V flush pump (PN 07-66-032)- not included!
Port conections inlet 19mm (3/4″), outlet 25mm or 38mm (1″ or 1,5″). Silent operation and low water consumption.
Easy to clean white ceramic design bowl and white wooden seat. Robust, stable and compact with a preferred appearance like a home toilet.
Specifications:
- Weight: 15.2 kg/39 lbs
- Dimensions: 405/15.9L x 410/16.14H x 340/13.4W mm/in
- Type: Design Dual Operation Electric
*Certification: CE marked 94/25/ECC, ISO8846 Small Craft, Electromagnetic compatibility 89/336/EEC, EN51014 1993/radio disturbance
Features & Specifications
- Manufacturer Part Number: 07-03-045
- UPC: 7340176601902
- Dimensions: 18 × 18 × 15
- Category: Marine Plumbing & Ventilation | Marine Sanitation
- Color = White | Size = Compact Size | Inlet Size = 3/4″ | Operation Method = Electric | Outlet Size = 1″ or 1-1/2″ | Rinse Water = Fresh | Volts = 12v | Type = Toilet
