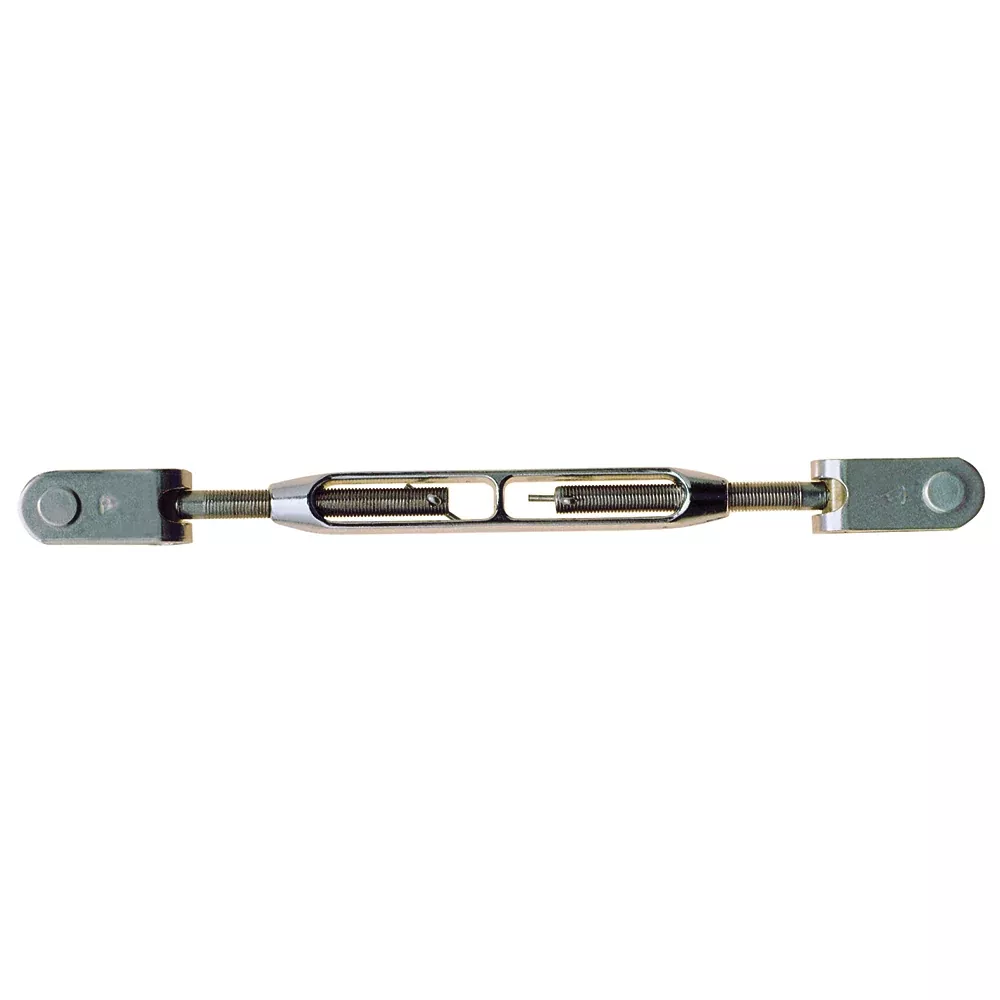

Jaw/Jaw Open Body Turnbuckle – 1/2-20 Thread
For those who prefer a traditional body turnbuckle. The forged silicon bronze body, coupled with our integral toggle jaw, provides positive locking and ease of adjustment.
Forged silicon bronze bodies with 316 stainless ends offer a great non-galling combination. Integral toggle jaw eliminates the need for a separate rigging toggle.
Specifications:
- Machine swage
- Bronze body/ 316 stainless ends
- Wire size: 5/16″
- Breaking strength: 10,500 pounds
- Safe working load: 4,200 pounds
- Thread size: 1/2-20
- Pin to pin length: 11-1/2″ (closed) 15-1/2″ (open)
- Body length: 6-1/2″
- Pin diameter: 1/2″
- Weight: 1 pound
Features & Specifications
- Manufacturer Part Number: 45-100
- Dimensions: 13 × 1 × 1
- Category: Sailing | Rigging
Accessories
- 71546|71547|71574|75406|75407|75408
- 50-115|50-115B|37-510|WRAPC2-P|WRAPC3-P|WRAPC4-P
