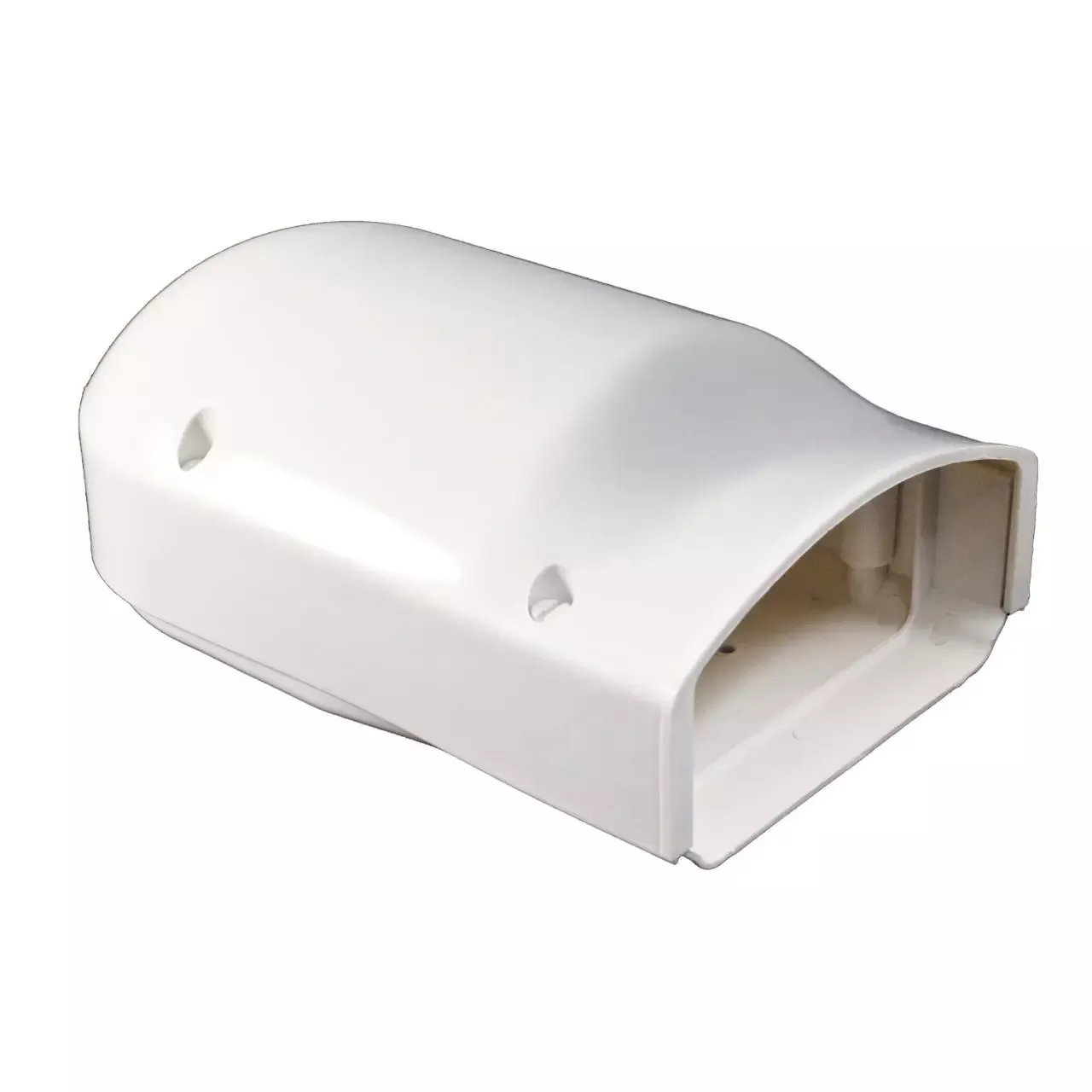

Cover Guard Wall Inlet, Multi Zone White

Cover Guard CGINLT Wall Inlet (Line Set Wall Inlet Cover)

The CGINLT is the Cover Guard line set wall inlet piece, designed to enclose and protect HVAC refrigerant/condensate/signal lines as they enter a wall. It acts as a finished end-piece to maintain aesthetics and shield the line set termination point from weather, pests, and damage.

• Model / Part: CGINLT (Cover Guard Wall Inlet) :contentReference[oaicite:0]{index=0}
• Application: End piece cover for line sets entering a wall — the transition point where piping, wiring, or conduits pass through the wall surface. :contentReference[oaicite:1]{index=1}
• Compatible system: Use with Cover Guard adjustable line set cover systems, especially when a line set terminates flush against or into a wall. :contentReference[oaicite:2]{index=2}
• Material: Rigid UV-stable plastic (PVC or similar polymer) :contentReference[oaicite:3]{index=3}
• Finish / Color: White (paintable per instructions) :contentReference[oaicite:4]{index=4}
• Temperature rating / operating conditions:
  • Tested from approximately **–4 °F to 140 °F** :contentReference[oaicite:5]{index=5}
  • UV resistant construction for outdoor exposure :contentReference[oaicite:6]{index=6}
  • Weather resistant / tested (e.g.>2,000 hours exposure in standard tests) per manufacturer data :contentReference[oaicite:7]{index=7}
• Dimensions (nominal):
  • Length: ~ 9.44 in ≈ 9 7⁄16 in :contentReference[oaicite:8]{index=8}
  • Width: ~ 5.66 in :contentReference[oaicite:9]{index=9}
  • Height / Channel (adjustable): ~ 3.7 in to 4.75 in (height of the internal channel) :contentReference[oaicite:10]{index=10}
  • Other noted dimensions:
    • Wall inlet outer height: ~ 9.25 in :contentReference[oaicite:11]{index=11}
    • Wall inlet outer width: ~ 2.75 in :contentReference[oaicite:12]{index=12}
    • Depth (projection from wall): ~ 5.75 in :contentReference[oaicite:13]{index=13}
• Adjustable / flexible features:
  • Channel depth is adjustable (to accommodate variations in wall thickness or line set spacing) :contentReference[oaicite:14]{index=14}
  • Cam screw fasteners (quick-lock style) allow opening / closing of the fitting for servicing or repositioning of linesets :contentReference[oaicite:15]{index=15}
  • Peel-away protective film helps maintain clean finish during installation :contentReference[oaicite:16]{index=16}
  • Components are paintable (with appropriate surface prep) to match building aesthetics :contentReference[oaicite:17]{index=17}
• Performance / functional features:
  • Encloses and protects line sets (refrigerant pipes, condensate lines, wiring) where they pass into a wall, reducing exposure to elements, pests, and physical damage :contentReference[oaicite:18]{index=18}
  • Helps maintain a finished, clean look to exterior walls with line set penetrations :contentReference[oaicite:19]{index=19}
  • Fittings do **not** release under pressure (i.e. robust closure / interlock to avoid accidental separation) :contentReference[oaicite:20]{index=20}
• Installation / mounting notes:
  • Mount flush to the wall surface at the point where the lineset enters the wall :contentReference[oaicite:21]{index=21}
  • Use appropriate sealant (e.g. caulk or weatherproof gasket) behind the inlet to prevent water ingress around the line penetration (best practice) — manufacturer instructions may recommend it :contentReference[oaicite:22]{index=22}
  • Ensure internal lines are centered and do not pinch or rub against internal surfaces when closing cam screws :contentReference[oaicite:23]{index=23}
  • Paint the exterior surface (if desired) after installation, observing recommended paint and curing instructions to avoid impairing fit / tolerances :contentReference[oaicite:24]{index=24}
  • If used in soffit or upward-entry installations, alternate Cover Guard models (e.g. CGSTI) may be better suited; the CGINLT is optimized for standard wall entry configuration :contentReference[oaicite:25]{index=25}
• Warranty / compliance:
  • Often backed by a minimum 3-year limited warranty (manufacturer standard for RectorSeal / Cover Guard line) :contentReference[oaicite:26]{index=26}
  • Complies with UV-exposure / thermal cycling test standards used in HVAC plastic covers (per manufacturer statements) :contentReference[oaicite:27]{index=27}
