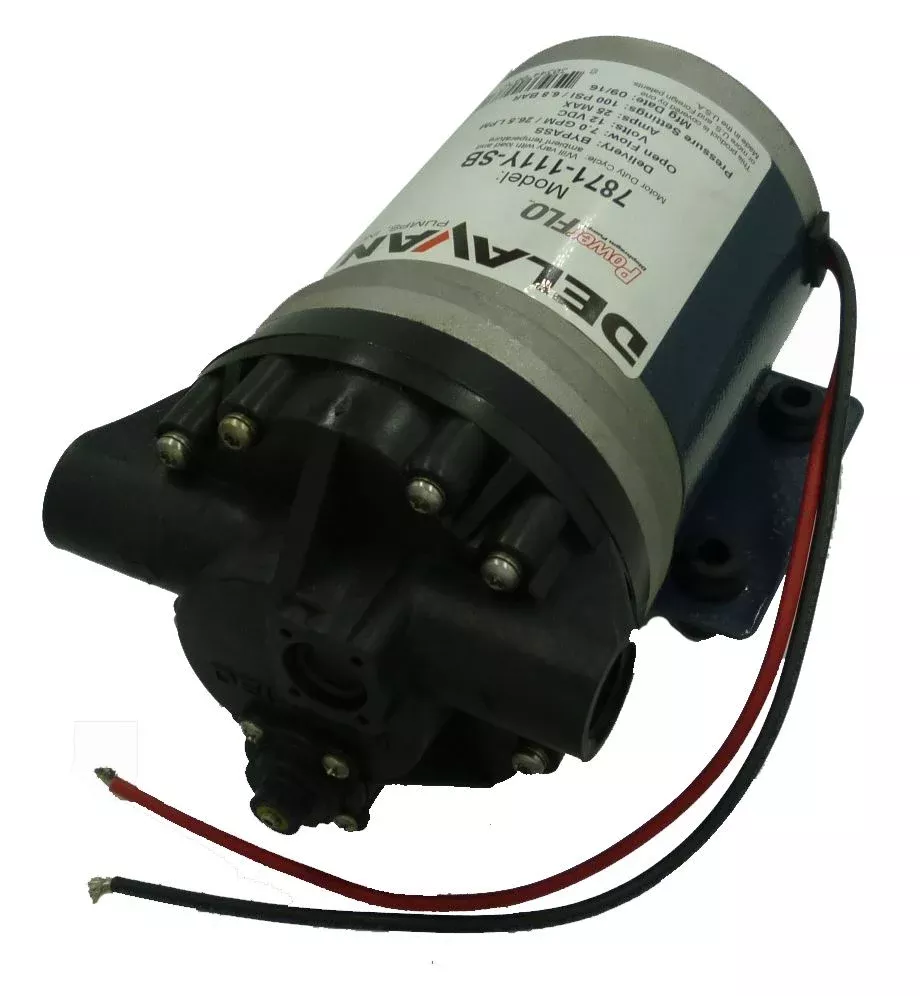

Delavan 7871-111Y-SB PowerFLO™ Advanced FB3 Series 7.0 GPM 100 PSI Diaphragm Pump with 1/2” FNPT Ports. Bypass Design – Continuous operation.
Features:• FB3 pumps are Delavan’s new advanced 12V smooth running, five chamber diaphragm pumps that features Extended Pump Life and Improved Performance• The FB3 is the most advanced, high flow 12V pump on the market, built with quality components, such as stainless fasteners, and high torque motors standard • The new diaphragm retaining system allows the pump to maintain its flow for longer hours of operation in demanding applications• The FB3 pumps feature Santoprene diaphragms and valves, to handle the FB3 pumps’ higher flow rates• Like all Delavan diaphragm pumps, this heavy duty pump can run dry and will self-prime• Made in the USA• 100% Factory tested• 2 Year warranty from date of purchase
Motor:• Type: 12 VDC permanent magnet, totally enclosed, non-ventilated• Leads: 12 AWG, 6” long• Max Amps (100 PSI): 25• Duty Cycle: See Heat Rise graph
Materials of Construction:• Motor Shell: Coated Steel• Housing: Polypropylene• Valves: Santoprene• Diaphragm: Santoprene/Stainless Steel• Fasteners: Stainless Steel
Manufacturer Recommendation:• If you are going to be running continuous use with any bypass model of pump, Delavan also recommends that you purchase a heat sink for the motor
Pump:• Bypass Design – Continuous operation with internal bypass• Type: 5-chamber positive displacement• Capable of being run dry• Excellent self-priming capability • Liquid Temperature: 140° F Max.• Priming Capabilities: 14’• Max. Flow: 7.0 GPM• Max Pressure: 100 PSI• Inlet/Outlet Ports: 1/2” FNPT• Packaging: Small box• Weight: 9.75 lbs
