Ductless Mini Split Wall Mounted Indoor Unit, 24,000 BTU, Multi Zone, 22 SEER with Remote and WIFI

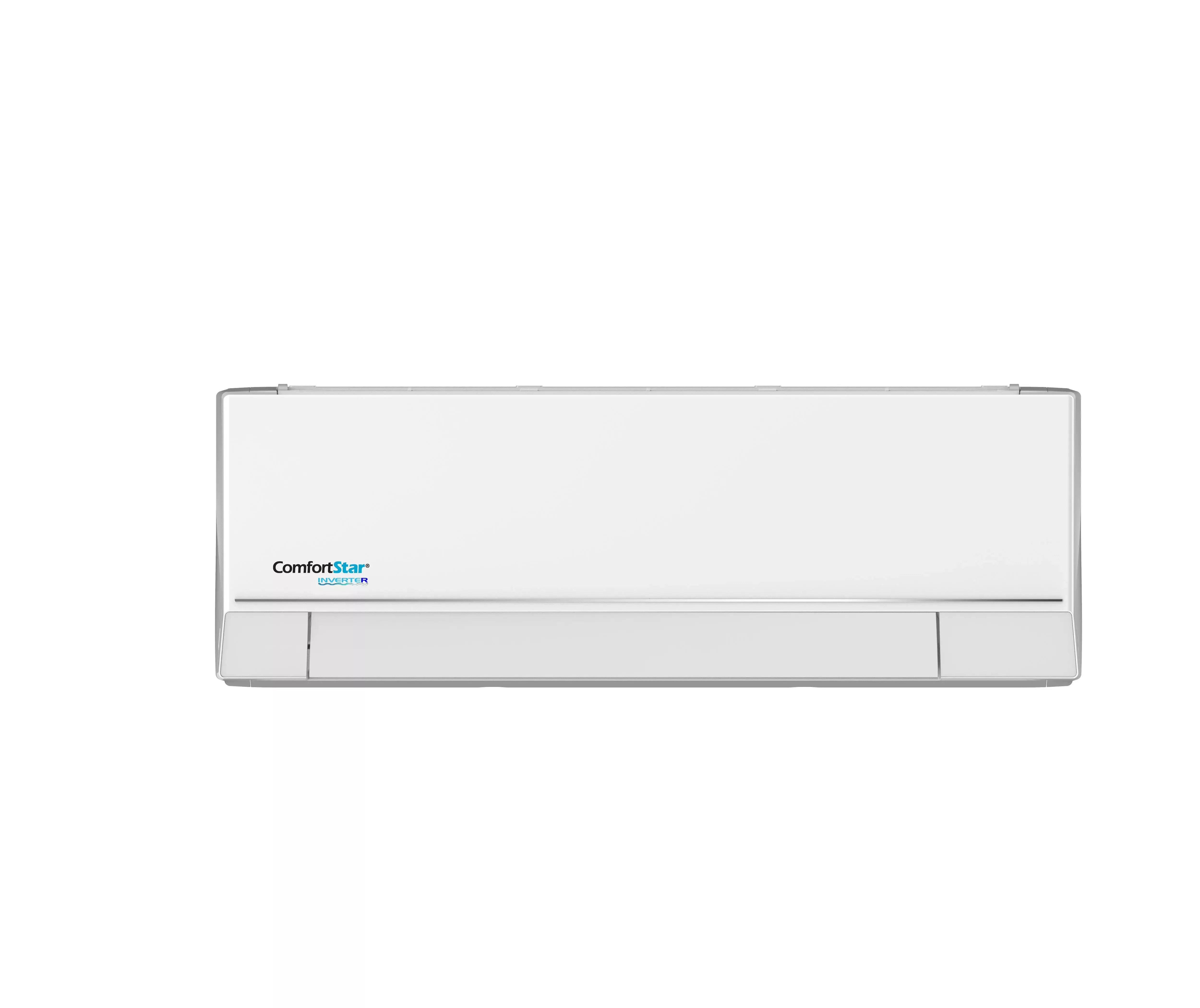

ComfortStar CHF24CD(I)WIFI – 24,000 BTU Wall-Mounted Indoor Unit with WiFi Control

The ComfortStar CHF24CD(I)WIFI is a 24,000 BTU wall-mounted indoor unit designed for use with ductless mini split systems. Built to support single-zone configurations, this unit provides efficient cooling and heating with a high SEER rating and quiet operation. It features integrated WiFi connectivity for remote access and includes a handheld remote for local control.

Designed to work in conjunction with ComfortStar outdoor condensers, the CHF24CD(I)WIFI provides a consistent and comfortable indoor environment across a range of residential and light commercial applications. Its compact profile and multi-speed fan operation enhance room comfort while maintaining low noise levels.

System Features

• 24,000 BTU Cooling/Heating Capacity: Suitable for medium to large spaces in single-zone applications
• WiFi Enabled: Built-in wireless module supports remote operation via compatible mobile app
• SEER Rating: Rated up to 22 SEER when matched with the appropriate outdoor unit
• Low Sound Output: Operates as low as 28 dB(A), suitable for noise-sensitive areas
• Wall-Mounted Configuration: Designed for above-door or high wall placement in conditioned zones

Technical Details

• Model: CHF24CD(I)WIFI
• BTU: 24,000
• SEER: Up to 22 (depending on system match)
• Voltage: 230V / 1 Phase
• Mounting Type: Wall Mounted
• Remote Control: Included (handheld); WiFi app-compatible

Installation Considerations

Installation should be completed by a licensed HVAC technician to ensure proper system integration, refrigerant charge, and compliance with manufacturer guidelines. WiFi configuration may require basic network setup. The unit is designed to pair with specific ComfortStar outdoor systems to achieve rated performance.

Applications and Suitability

This model is appropriate for residential bedrooms, offices, server rooms, or other single-zone spaces requiring direct comfort control. It supports year-round operation, including low ambient conditions when matched with a compatible heat pump condenser.
