Milwaukee 3497-22 – M12 FUEL™ 2-Tool Combo Kit: 1/2″ Drill Driver & 1/4″ Hex Impact Driver
The Milwaukee 3497-22 M12 FUEL™ Combo Kit includes two compact, cordless tools engineered for high-efficiency fastening and drilling in tight or overhead spaces. The kit features the M12 FUEL™ 1/2″ Drill Driver (3403-20) and M12 FUEL™ 1/4″ Hex Impact Driver (3453-20), both equipped with POWERSTATE™ brushless motors and REDLINK PLUS™ electronic controls.

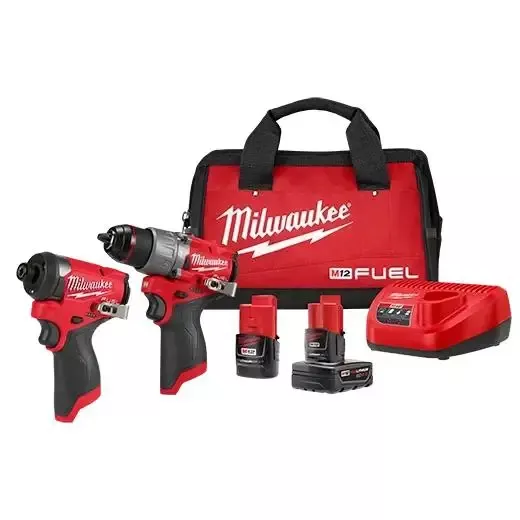

Kit Contents
- M12 FUEL™ 1/2″ Drill Driver (3403-20)
- M12 FUEL™ 1/4″ Hex Impact Driver (3453-20)
- M12 REDLITHIUM™ XC 4.0Ah Battery
- M12 REDLITHIUM™ CP 2.0Ah Battery
- M12 Charger
- Contractor Tool Bag
Tool Features
- POWERSTATE™ Brushless Motor – Increases runtime, torque output, and service life.
- REDLINK PLUS™ Intelligence – Optimizes tool output and monitors thermal/load conditions to prevent damage.
- Compact Housing – The drill driver measures 5.9″ in length, and the impact driver measures 5.0″, providing access in confined work areas.
- Tri-LED Worklight (Impact Driver) – Enhances visibility around the bit tip in low-light conditions.
- Battery System: Fully compatible with all M12™ REDLITHIUM™ batteries and chargers.
Technical Specifications
Drill Driver (3403-20)
- Chuck Type: 1/2″ metal ratcheting
- Max RPM: 0–1,550
- Max Torque: 400 in-lbs
- Length: 5.9 in
Impact Driver (3453-20)
- Drive Type: 1/4″ Hex Quick-Change
- Max RPM: 0–3,300
- Max Torque: 1,500 in-lbs
- Impacts Per Minute (IPM): 0–4,000
- Length: 5.0 in
Application Notes
This subcompact tool set is optimized for service, installation, finish carpentry, electrical, and light-duty mechanical applications. Suitable for work in cabinets, above-ceiling installations, and tight enclosures where standard 18V tools are impractical. Tools are designed for use with Milwaukee’s M12 REDLITHIUM™ battery system.
