B60 Tilted Element 12°
12° titled version is designed for 8° – 15° deadrise angles
For use with Raymarine DSM250/DSM300/DSM300G/DSM30/CP300

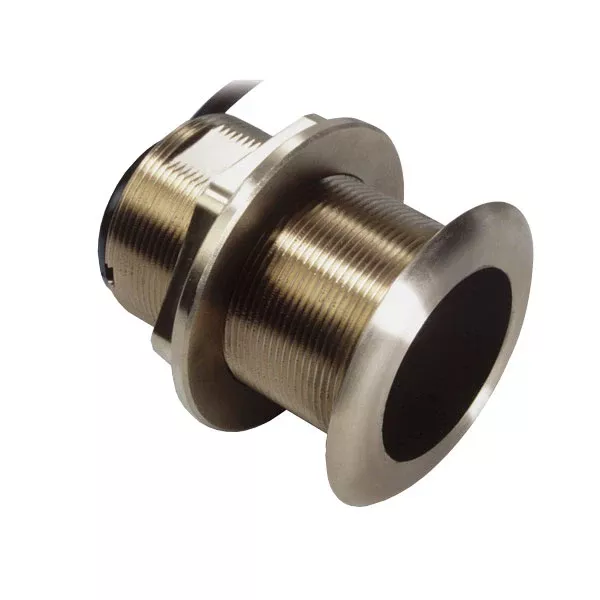

The bronze B60-12° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16″) extending outside of the hull.
Features:
- Depth/Temp
- 50/200 kHz
- 600w RMS
- Mid-performance
- Bronze
Features & Specifications
- Manufacturer Part Number: E66086
- UPC: 0723193660867
- Dimensions: 11 × 8 × 4
- Category: Marine Navigation & Instruments | Transducers
- Temperature = Yes | Speed Included = No | Mounting Style = Thru-Hull | Imaging = Standard | Chirp = No | Cable Length (Feet) = 33′
Accessories
- 57081|57085|57146|57150|59882|67635|67636|67637|68852|68853|68854|70154|70155|70156|70157|70158|70159|70160|70161|70162|70163|70164|70165|70167|70177|70182|70184
- 60WR-2|60WR-4|60WR-1|60WR-3|ANGLE FINDER|300|302|301|320|321|322|1030|1031|1032|1033|1034|1035|1036|1052|1055|1169|1170|1171|1173|1160|1161|1162
