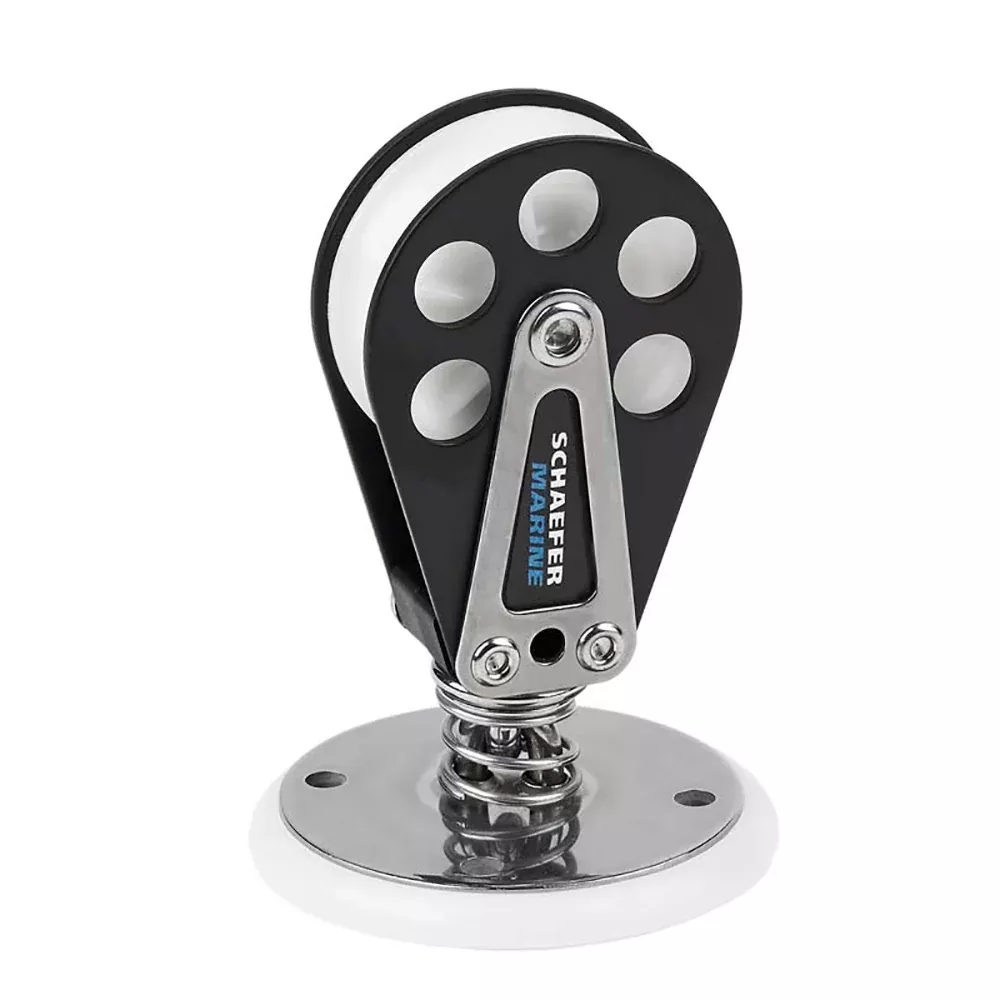

Stand-Up Swivel with Aluminum Cheeks
Delrin™ sheave ensures smooth operation and high safe working load.
Specifications:
- Sheave Dia. 2″ (51 mm)
- Max Line 7/16″ (11 mm)
- Diameter includes urethane base 2-7/8″ (73 mm)
- Height 4-1/32″ (103 mm)
- H2 2-3/32″ (54 mm)
- Fastener Size (4), 10 RH (5 mm)
- C/C 1-12/31″ (36 mm)
- SWL 1750 lbs. (790 kg)
- Weight Alum. 7.0 oz. (198 g)
- 97-48 Backing Plate SOLD Separately
Features & Specifications
- Manufacturer Part Number: 504-62
- UPC: 0740507011818
- Dimensions: 5 × 3 × 3
- Category: Sailing | Blocks
