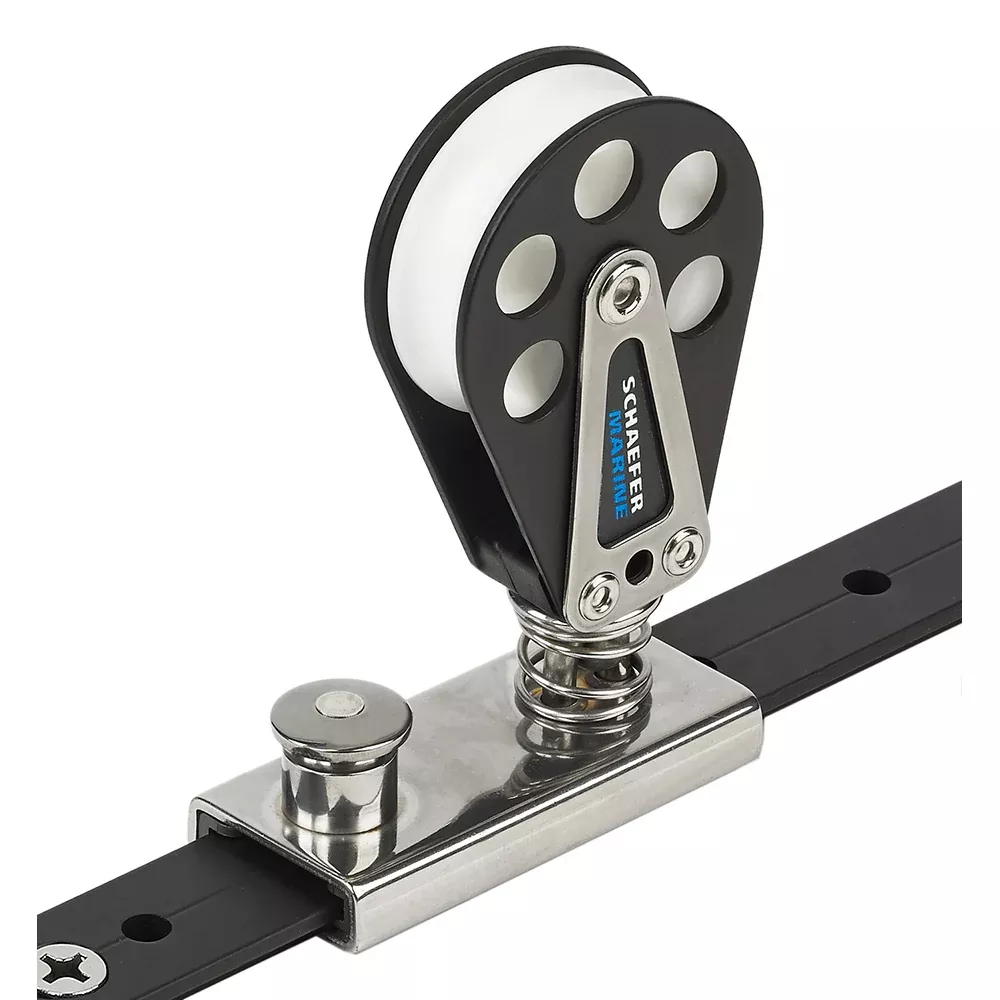

Spring Loaded/Lined Slide/Aluminum for 1″ T-Track
Delrin™ sheave ensures smooth operation and high safe working load. Anodized aluminum cheeks and stainless steel slider ensure reliability. Polyethylene liner and pin stop allow for easy adjustment.
Specifications:
- Track Size 1″ x 1/8″ (25 mm x 3 mm)
- Max. Boat Length- 27′ (8m)
- Max. Boat Weight- 5000 lbs. (2270 kgs)
- Sail Area- 315 sq. ft (29 m2)
- Sheave Diameter 2″ (51 mm)
- Max Line 7/16″ (11 mm)
- Length 3″ (76 mm)
- Width 1-1/4″ (31 mm)
- Height 4-5/32″ (105 mm)
- Bearing Height 2-7/32″ (56 mm)
- SWL 1750 lbs. (795 kg)
- Weight 7.0 oz. (198 g)
Features & Specifications
- Manufacturer Part Number: 504-82
- UPC: 0740507020902
- Dimensions: 4 × 3 × 1
- Category: Sailing | Blocks
