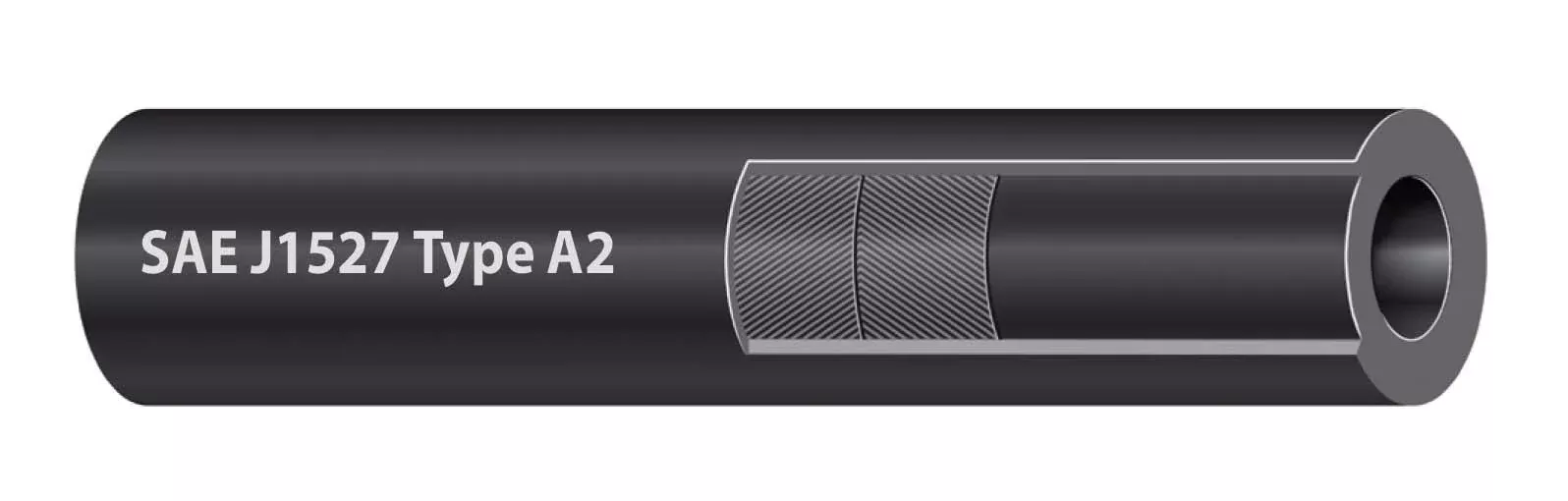

The Shields 369 Series Fuel Vent Hose is designed for vent lines in gasoline and diesel fuel systems, including those with up to 85% ethanol blends. Ideal for pleasure boats, this hose is fire-resistant and features a durable NBR/PVC cover that withstands harsh weather and UV exposure. Built to meet stringent marine safety standards, it complies with SAE J1527 Type A2, ISO 7840 Type A2, and NMMA/CE Type Acceptance requirements. The hose is flexible, easy to install, and delivers reliable performance in marine environments with a temperature range of -20 Degree F to 160 Degree F. Sold by the foot, it offers customizable lengths for various fuel vent applications.
Key Features:
- Suitable for gasoline (up to 85% ethanol) and diesel fuel vent lines
- Fire-resistant with a robust NBR/PVC cover
- Weather and UV resistant for enhanced durability
- Meets USCG Type A2, SAE J1527 Type A2, ISO 7840 Type A2 standards
- NMMA/CE Type Accepted
- Temperature range: -20 Degree F to 160 Degree F
- Sold by the foot for flexible installation
Specifications:
| I.D. (inches) | I.D. (mm) | O.D. (inches) | O.D. (mm) | Working Pressure (PSI) |
|---|---|---|---|---|
| 5/8″ | 15.9 | 0.96″ | 24.38 | 50 |
Features & Specifications
- Manufacturer Part Number: 16-369-0586
- UPC: 0808282000000
- Diameter: Interior: 5/8″
- Diameter: Outside: 31/32″
- Length: 50′
- Package: R/O Carton
- Working Pressure: 50
