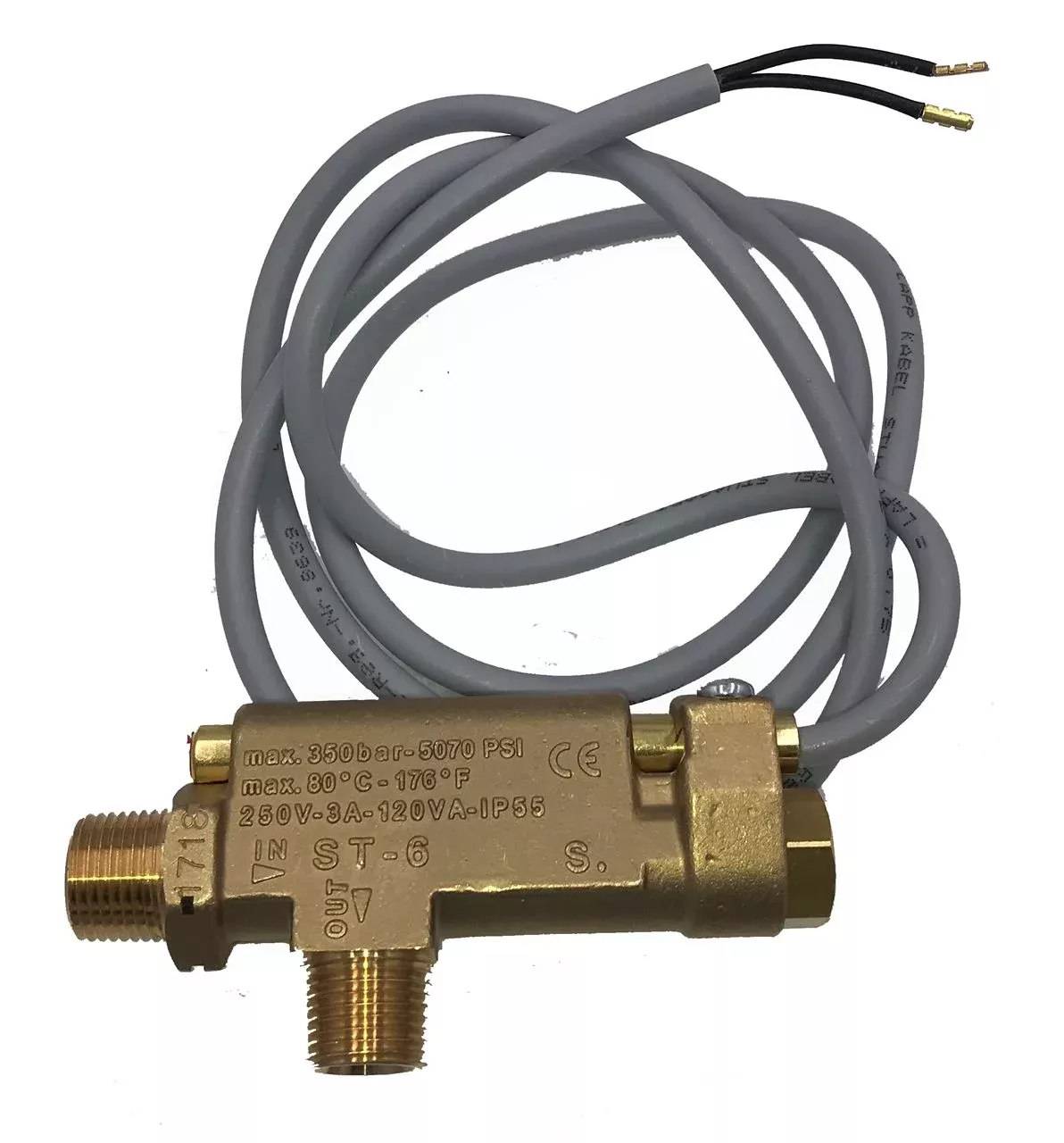

Suttner ST-6 Any Position Flow Switch. Mounts in any position and spring assisted brass magnet configuration
Features:• Can be mounted horizontal or vertical• Reed switch encased in protective vacuum sealed glass tube eliminating exposure to corrosive cleaning chemicals• Mounts further downstream in pumping system than traditional vacuum switches, thereby minimizing potential leak points that can cause vacuum switches to close• Easy reed switch replacement• Most proven and reliable flow switches in the industry
Specifications:• Max. Pressure: 5,070 PSI• Min. Pressure: 75 PSI• Max. Flow Rate: 8.0 GPM• Min. Flow Rate: 1 GPM• Contact: 1 A – 250 V• Max: Fluid Temperature: 176° F • Cable Length: 47.0” • Inlet & Outlet: 3/8” MPT• Housing: Brass• Replaces 200006540• Weight: 0.80 lbs
