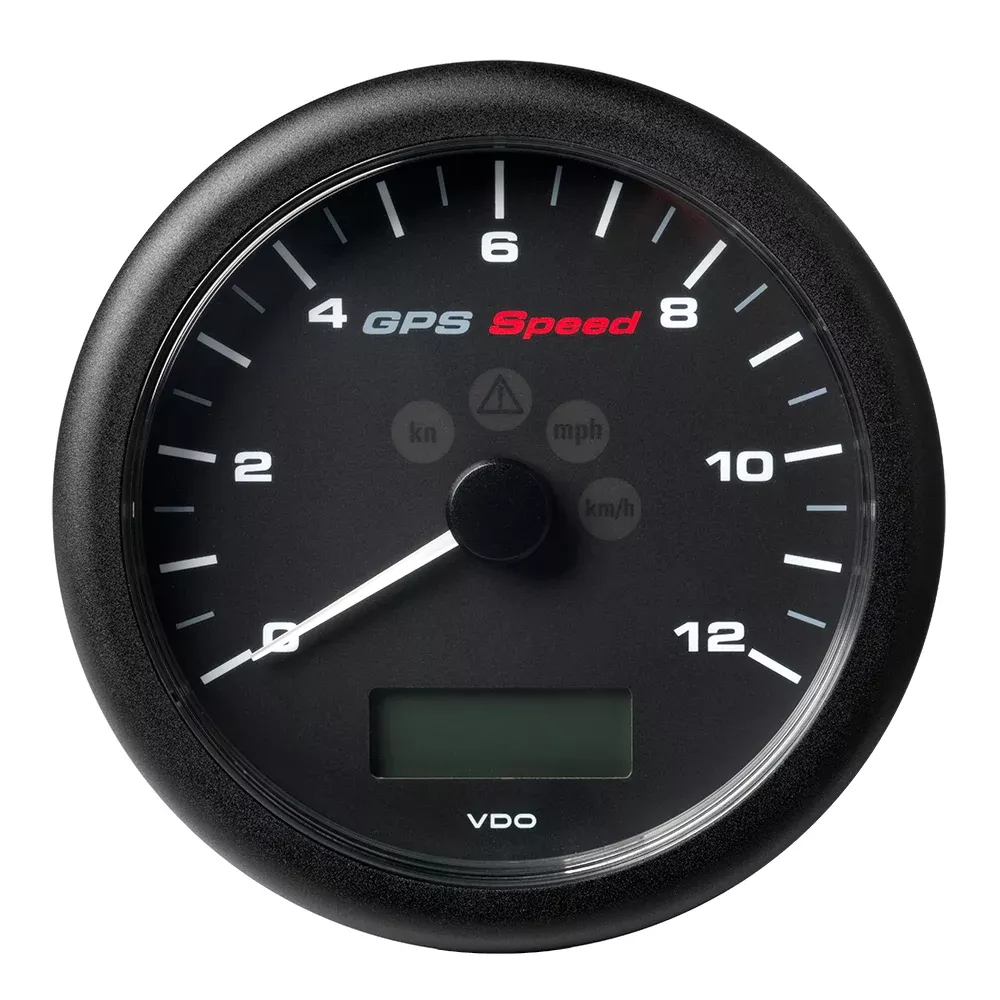

4-1/4″ (110MM) ViewLine GPS Speedometer 0-12 KNOTS/KMH/MPH – 8 to 16V Black Dial & Bezel
Based on the ViewLine housing concept, ViewLine gauges provides an ideal IP protection class, a modern appearance and high quality standards.
It provides many parameters in NMEA 2000® and there are several customization opportunities to meet specific customer demands.
Displayed Data:
- GPS signal quality, Course over ground (COG)
- UTC time (optional with external push button)
- Trip distance (optional with external push button),
- Trip time (optional with external push button)
Specifications:
- Embedded GPS antenna
- Robust and flexible design for versatile applications
- CAN capability (NMEA 2000®)
- Pointer for analog indication of Speed over Ground (SOG)
- Programmable speed alarm
- Fixed segment LCD
- Flush mount possibility
- Front side protection rating IP67
- Compass for Course over Ground (COG)
- Clock
- 110 mm installation diameter
- 126 mm outer diameter
- 50 mm installation depth
- Reverse polarity protection
- 1x Telltale generic alarm
- 1x Telltale alarm (knots / kmh / mph)
This product may not be returned to the original point of purchase.Please contact the manufacturer directly with any issues or concerns.
Features & Specifications
- Manufacturer Part Number: A2C59501987
- Dimensions: 8 × 7 × 4
- Category: Marine Navigation & Instruments | Gauges,Boat Outfitting | Gauges
- Gauge Type = Speedometer | Gauge Size = 4-1/4″ | Box Set = No | Series = ViewLine
Compatibility, Limitations & Notices
- This product is listed by the supplier as non-returnable.
