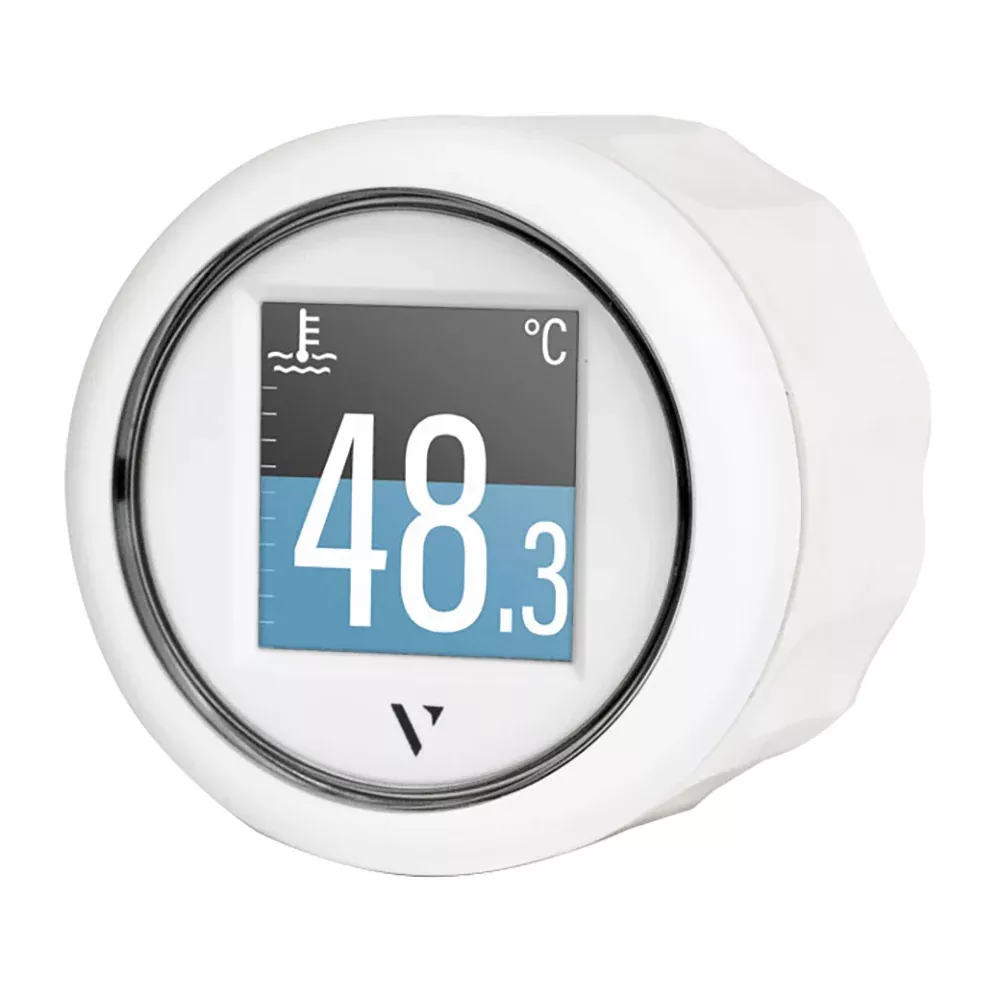

52mm (2-1/16″) ViewLine Flex Gauge – J1939 – White
Veratron’s VL Flex 52 – J1939 was designed to meet the rigorous demands of commercial use. Supporting a broad range of sensors, the all-in-one round gauge is singularly unique in that it can display two sets of diesel engine data simultaneously and is easily configured using a mobile device and the companion Veratron app.
The VL Flex 52 – J1939 supports input from analog sensors as well as J1939 and LIN 2.0. The simple but effective graphic design can be set up in a single or dual layout, pulling from up to 30 sets of data. It can display a large numerical value and colored bar graph that are viewable in any light condition due to its sun-readable PMMA lens with anti-glare.
*VL Flex Configurator App (Android or iOS) has to be downloaded – no charge
Supported Configurations:
- Wheel Speed – Engine Load – Fuel Level – Oil Level – Oil Pressure – Boost Pressure – Coolant Pressure
- Coolant Temp – Battery Current – Brake Pressure – Gear Oil Level – Gear Oil Pressure – Battery Potential
- Air Temperature – Exhaust Temperature – Oil Temperature – Gear Oil Temperature – Fuel Rate
- Fuel Economy – Engine Speed – Odometer – Engine Hours – Total Fuel – Clock – DEF/BLUE Level
- Battery SOC/SOH – Battery Temperature – Battery Autonomy
Features:
- 1.44” sun-readable color TFT display
- J1939 Interface
- Front lens with anti-glare and anti-fog treatments
- 52mm (2-1/16″) mounting diameter
In the Box:
- VL Flex J1939
- 52mm Mounting SpinLock
- 8 Pole Cable
- Safety Instructions
*Sold as an individual
This product may not be returned to the original point of purchase.Please contact the manufacturer directly with any issues or concerns.
Features & Specifications
- Manufacturer Part Number: B00110901
- UPC: 7640190290008
- Dimensions: 4 × 3 × 3
- Category: Marine Navigation & Instruments | Gauges,Boat Outfitting | Gauges
- Box Set = No | Gauge Size = 2-1/16″ | Gauge Type = Multifunction | Series = ViewLine | Voltage – Input Range (Volts) = 12/24v
Compatibility, Limitations & Notices
- This product is listed by the supplier as non-returnable.
Accessories
- 81283|83028|83029|83030|83031|83032|83033|83034|83035|83036|83066
- A2C5205947101|A2C5318602201|A2C5318602301|A2C5318604001|A2C5318602401|A2C5318602501|A2C5318602601|A2C5318602701|A2C5318602801|A2C5318602901|A2C5312164501
